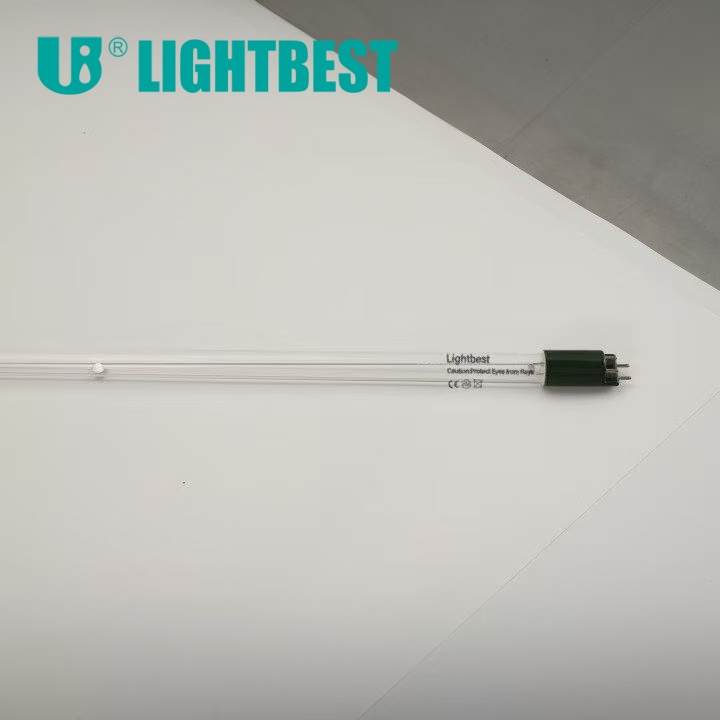

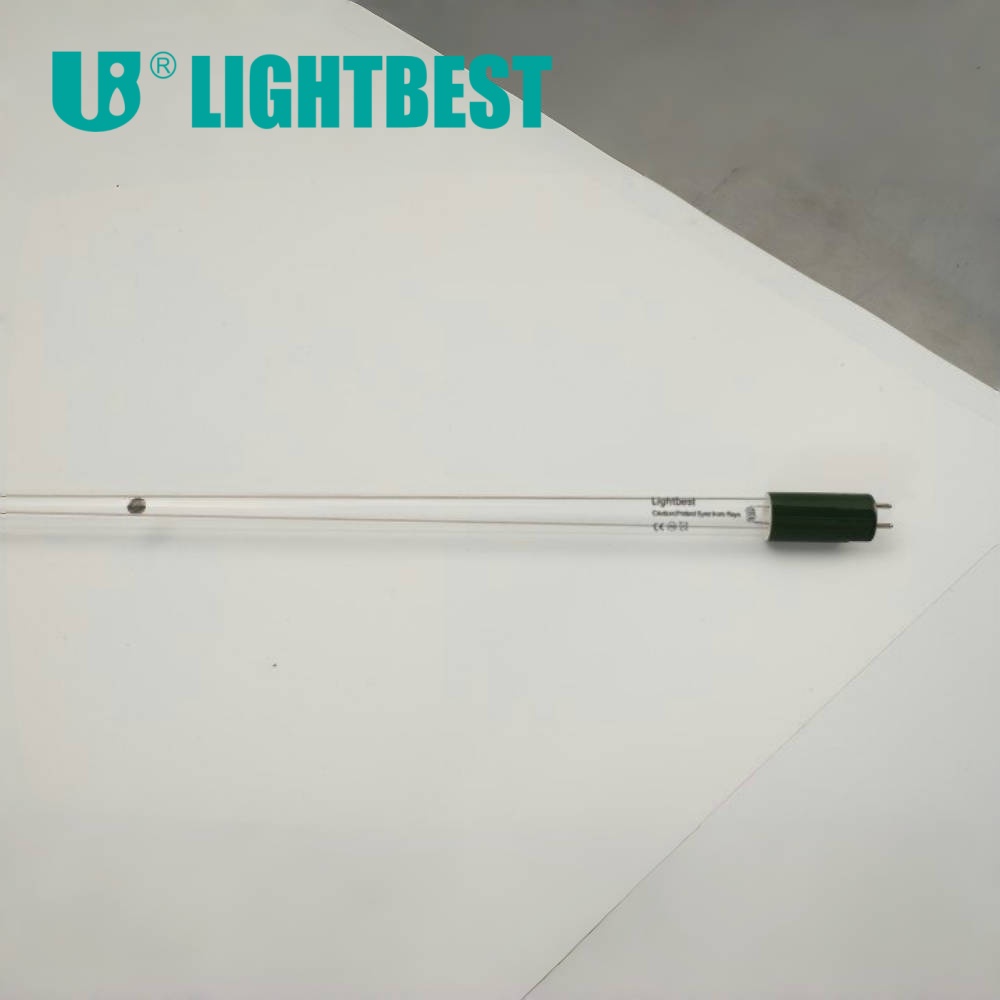

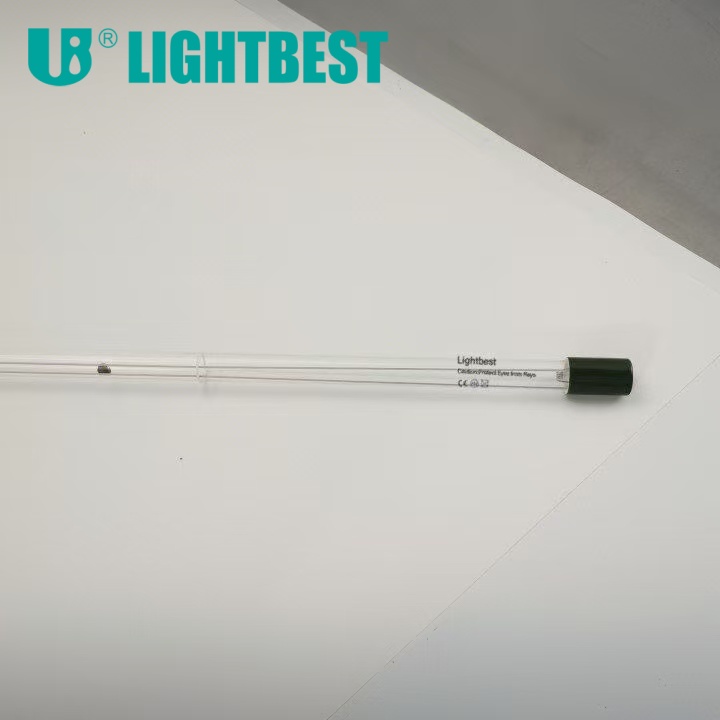

GPHA1564T6L/2S4P 256W 794447-OGN or 302509 Equivalent Replacement Amalgam UV Lamp for UV3000 Plus / Logic Series AL

Product Description：

Length：1564mm（±1mm）

Tube diameter：19mm

Base：B22

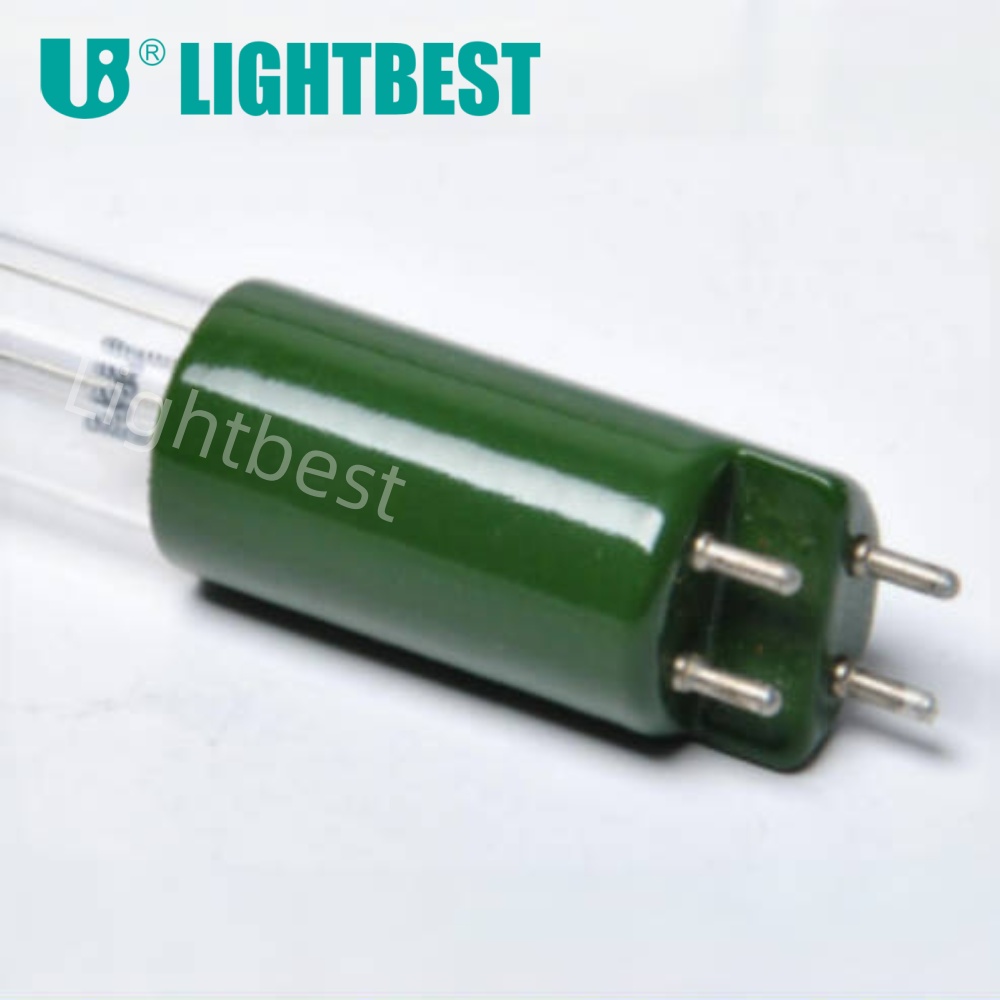

Base Description：4 Pin Step Single Ended Amalgam (B22)

Lamp power：256±8W

Lamp current：2.0A

Lamp Voltage at high frequency：135V

Uv Output at 1 Meter：630μw/cm²

Rated time：13000-16000h

Product Features and Advantages：

Lightbest's 256W Amalgam lamps are perfect replacement for the 794447-OGN or 302509 UV lamps for UV3000 Plus and Logic Series AL UV systems. Made from high-quality quartz containing less than 1 ppm hydroxy (-OH) and advanced amalgam tech. & coating tech., our lamps perform with high UV intensity maintenance rate and offer lamp life up to 13000-16000h. They are widely used in both new installation and replacement in water treatment UV system, offering reliable quality, stable performance, and an excellent value. Lightbest also offers door-to-door delivery services from our factory to global customers based on DDU or DDP term. CE, FCC, EPA, and MSDS certifications and documentation are also available to your need.
