Preheat start germicidal lamps
| Model Number | Lamp Dimensions(mm) | Power | Current | Voltage | UV Output at 1 Meter | Rated Life | |||
| Tube Diam | Length | Arc Length | (W) | (mA) | (V) | (μw/cm²) | (W) | (H) | |
| GPH135T5L/4P | 15 | 135 | 55 | 4 | 180 | 28 | 16 | 1.5 | 9000 |
| GPH212T5L/4P | 15 | 212 | 132 | 10 | 180 | 30 | 22 | 2.0 | 9000 |
| GPH238T5L/4P | 15 | 238 | 158 | 11 | 425 | 32 | 27 | 2.7 | 9000 |
| GPH245T5L/4P | 15 | 245 | 165 | 12 | 425 | 35 | 28 | 2.8 | 9000 |
| GPH250T5L/4P | 15 | 250 | 170 | 12 | 425 | 36 | 29 | 3.0 | 9000 |
| GPH254T5L/4P | 15 | 254 | 174 | 12 | 425 | 37 | 30 | 3.2 | 9000 |
| GPH275T5L/4P | 15 | 275 | 195 | 13 | 425 | 39 | 34 | 3.5 | 9000 |
| GPH287T5L/4P | 15 | 287 | 207 | 14 | 425 | 41 | 40 | 4.0 | 9000 |
| GPH303T5L/4P | 15 | 303 | 222 | 15 | 425 | 43 | 42 | 4.1 | 9000 |
| GPH330T5L/4P | 15 | 330 | 250 | 17 | 425 | 44 | 45 | 4.5 | 9000 |
| GPH357T5L/4P | 15 | 357 | 297 | 18 | 425 | 51 | 54 | 5.7 | 9000 |
| GPH436T5L/4P | 15 | 436 | 356 | 21 | 425 | 62 | 72 | 7.3 | 9000 |
| GPH450T5L/4P | 15 | 450 | 370 | 22 | 425 | 64 | 74 | 7.5 | 9000 |
| GPH463T5L/4P | 15 | 463 | 383 | 23 | 425 | 66 | 78 | 8.0 | 9000 |
| GPH550T5L/4P | 15 | 550 | 470 | 28 | 425 | 69 | 85 | 8.9 | 9000 |
| GPH620T5L/4P | 15 | 620 | 540 | 30 | 425 | 80 | 98 | 9.8 | 9000 |
| GPH645T5L/4P | 15 | 645 | 565 | 32 | 425 | 85 | 100 | 10.0 | 9000 |
| GPH650T5L/4P | 15 | 650 | 570 | 34 | 425 | 90 | 105 | 10.6 | 9000 |
| GPH793T5L/4P | 15 | 793 | 713 | 38 | 425 | 112 | 120 | 13.0 | 9000 |
| GPH810T5L/4P | 15 | 810 | 730 | 39 | 425 | 115 | 130 | 14.5 | 9000 |
| GPH843T5L/4P | 15 | 843 | 762 | 41 | 425 | 120 | 150 | 15.0 | 9000 |
| GPH1148T5L/4P | 15 | 1148 | 1068 | 55 | 425 | 165 | 180 | 22.0 | 9000 |
| GPH1554T5L/4P | 15 | 1554 | 1474 | 75 | 425 | 220 | 240 | 33.0 | 9000 |
| GPH1630T5L/4P | 15 | 1630 | 1550 | 79 | 425 | 231 | 250 | 34.5 | 9000 |
| * All the above lamps can be made as High Ozone (VH) type 185nm * Customized lamps to your needs | |||||||||
Standard Output Germicidal Lamps
"Lightbest manufacture UV germicidal lamps with two types of high-quality fused quartz, including doped fused quartz type and clear fused quartz, which emit different wavelength of UV energy.
Ozone-free (L) lamps, made with doped fused quartz which blocks the transmission of 185nm energy, emit approximately 95% of the ultraviolet energy at the mercury resonance wavelength of 253.7nm. This wavelength is the region of maximum germicidal effectiveness and is highly lethal to virus, bacteria, protozoa and mold.
Very-High (VH) ozone generating lamps, made with nature clear fused quartz which can transmit 185nm and 253.7nm UV energy. 185nm can not kill bacterial or virus directly, however, it can produce abundant of ozone (O3) from oxygen (O2) in air. Ozone can break cell walls of microbial so that immediately kill microorganism acting as strong oxidizers and deoxidizers."

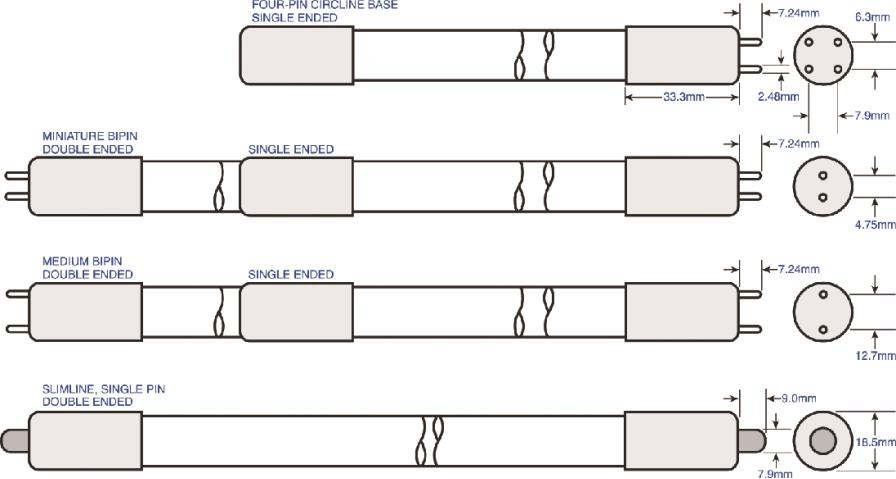

Typical Germicidal Lamps' Configurations
Preheat Start germicidal lamps are operated by a preheat start circuit that employs a relatively compact and economical ballast. The preheat circuit requires four electrical connections per lamp and a slight to moderate delay is needed to start the lamp. Some modern electronic ballasts are capable of instant starting a preheat lamp, or available by changing the circuit.
These germicidal lamps are extensively applied in water treatment, air purification and surface sterilization.
Instant Start germicidal lamps are instant starting and utilize a coil filament on each end which operates hot cathode. Lamp life is determined by the life of the electrodes and is affected by the frequency of starting.
These germicidal lamps are extensively applied in air purification and duct systems (such as HVAC).
