EPS7-230-10A High Temperature Resistant 80° Uv Electronic Ballast with Heating Sterilization Function

Short Description:

Type:UV Lamp Electronic Ballast
Mains Voltage:120VAC±10%
Mains Frequency:50/60Hz
Material:Ta=80°
OEM:available


products_icon

Product Detail

Product Tags

EPS7-230-10A 10W High Temperature Resistance Electronic Uv Light Ballast

The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.

There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.

Type

Input Current

(A)

Lamp Power

(W)

Lamp Current

(A)

Function

Weight

(kg)

Packing

(mm)

Qty

( pcs )

GW

 (kg)

EPS7-425-75U

0.83A@110V

0.38A@240V

 1*55-75

2*28-41

0.38-0.43 5V0.27 450*280*190 36 10.2

PH7-425-75U

0.83A@110V

0.38A@240V

 1*55-75

2*28-41

0.39-0.43

5V

0.27

450*280*190

36

10.2

PH7-800-95U

1.0A@110V

0.46A@240V

55-95

0.75-0.85

LED 5V

0.27

450*280*190

36

10.2

PH7-1200-105U

1.10A@110V

0.50A@240V

42-105

1.10-1.30

LED 5V

0.27

450*280*190

36

10.2

PH7-1800-57U

0.62A@110V

0.28A@240V

57

1.70-1.90

LED 5V

0.27

450*280*190

36

10.2

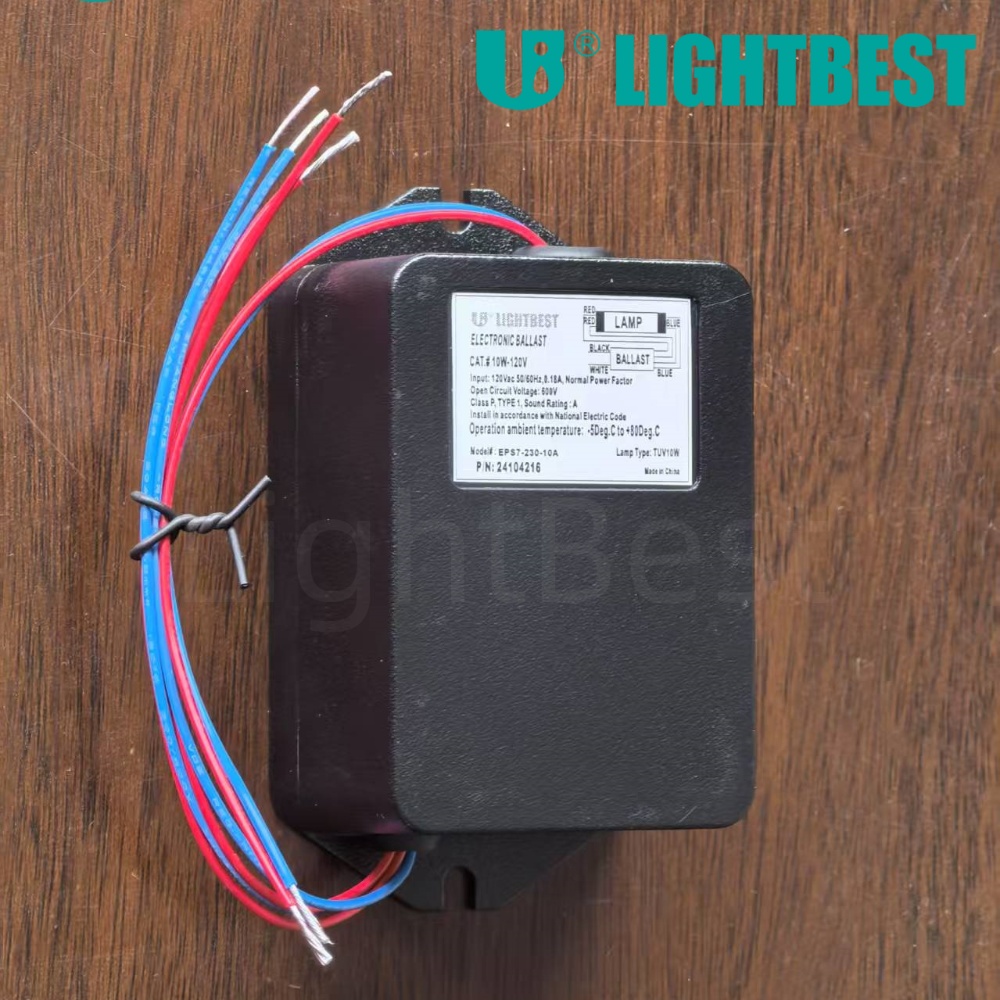

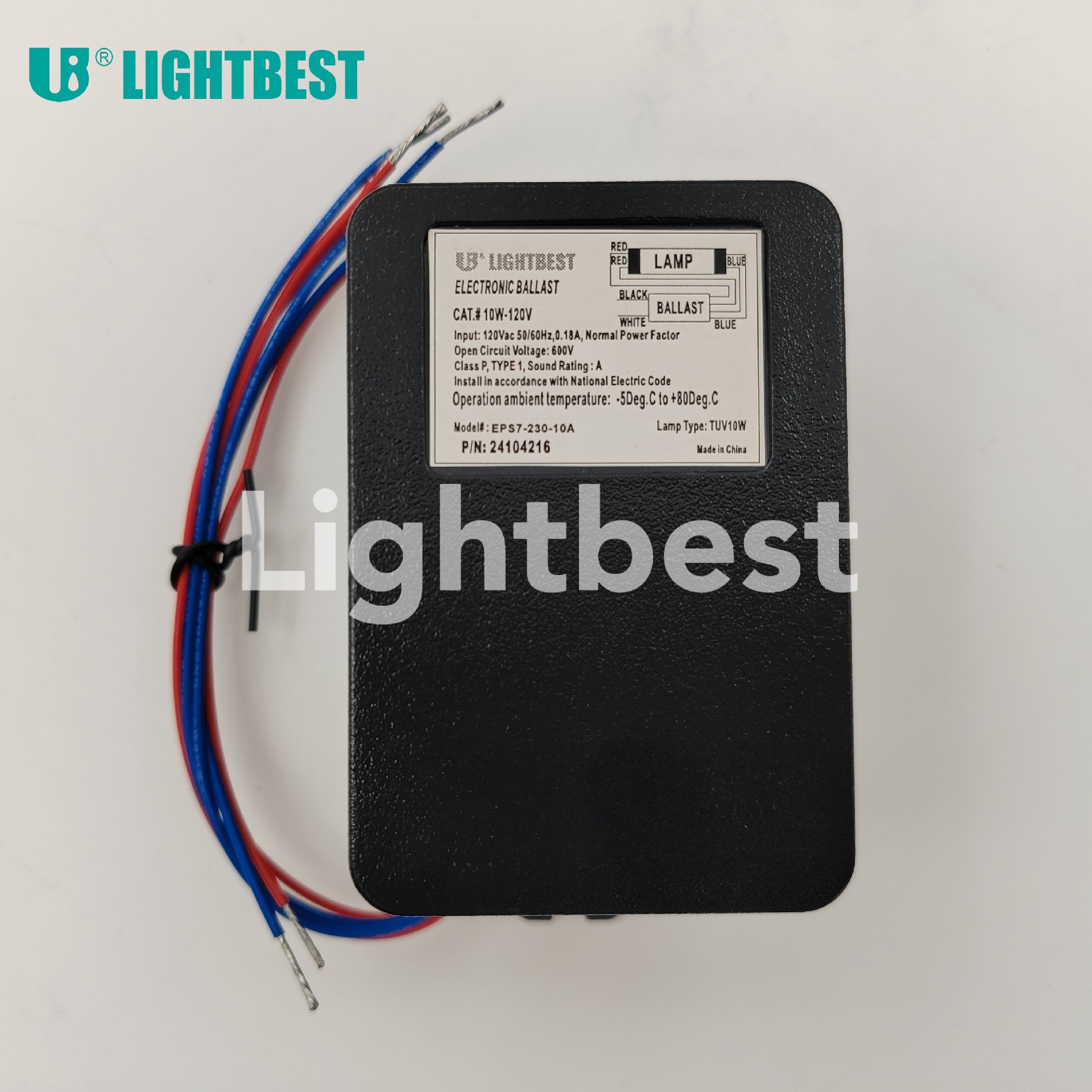

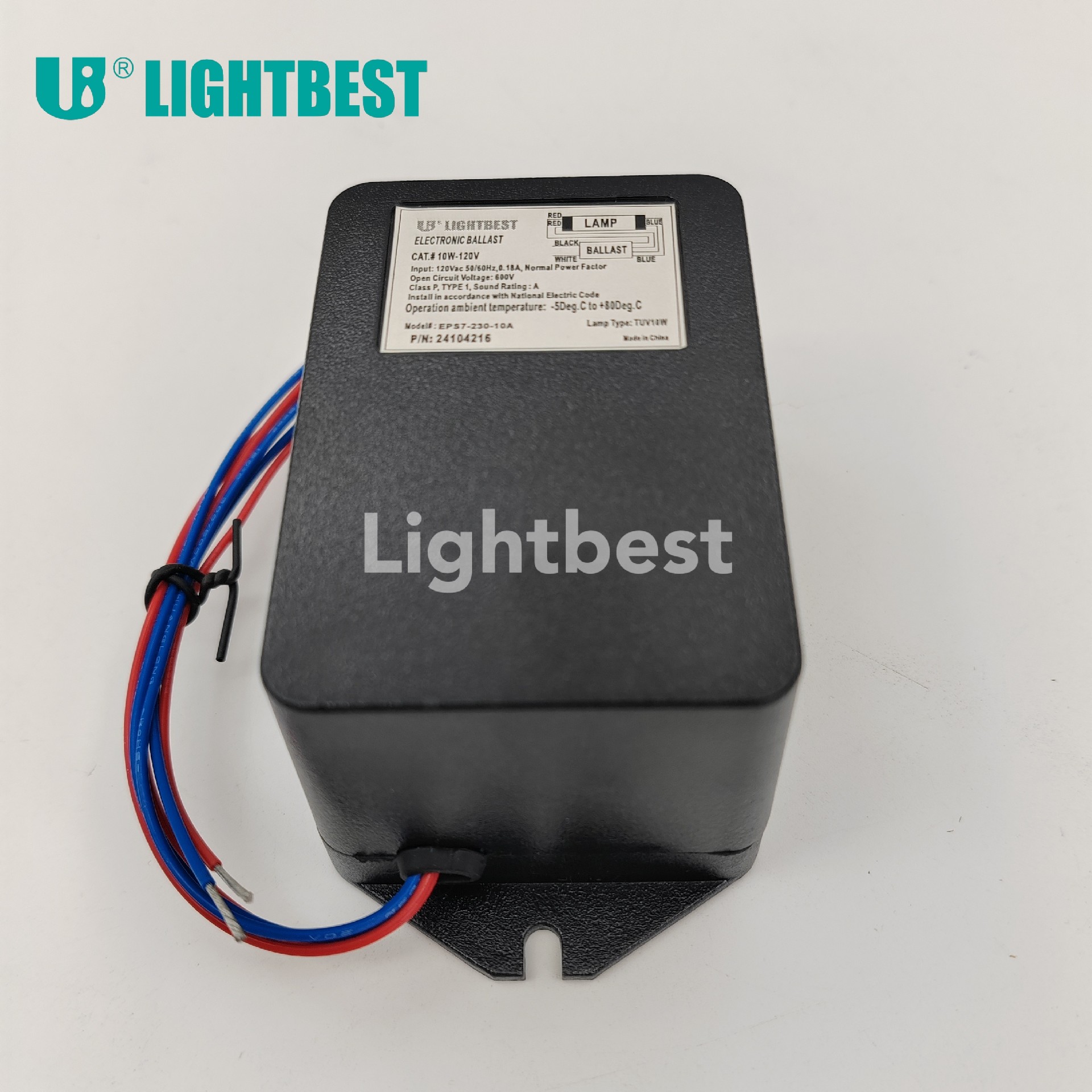

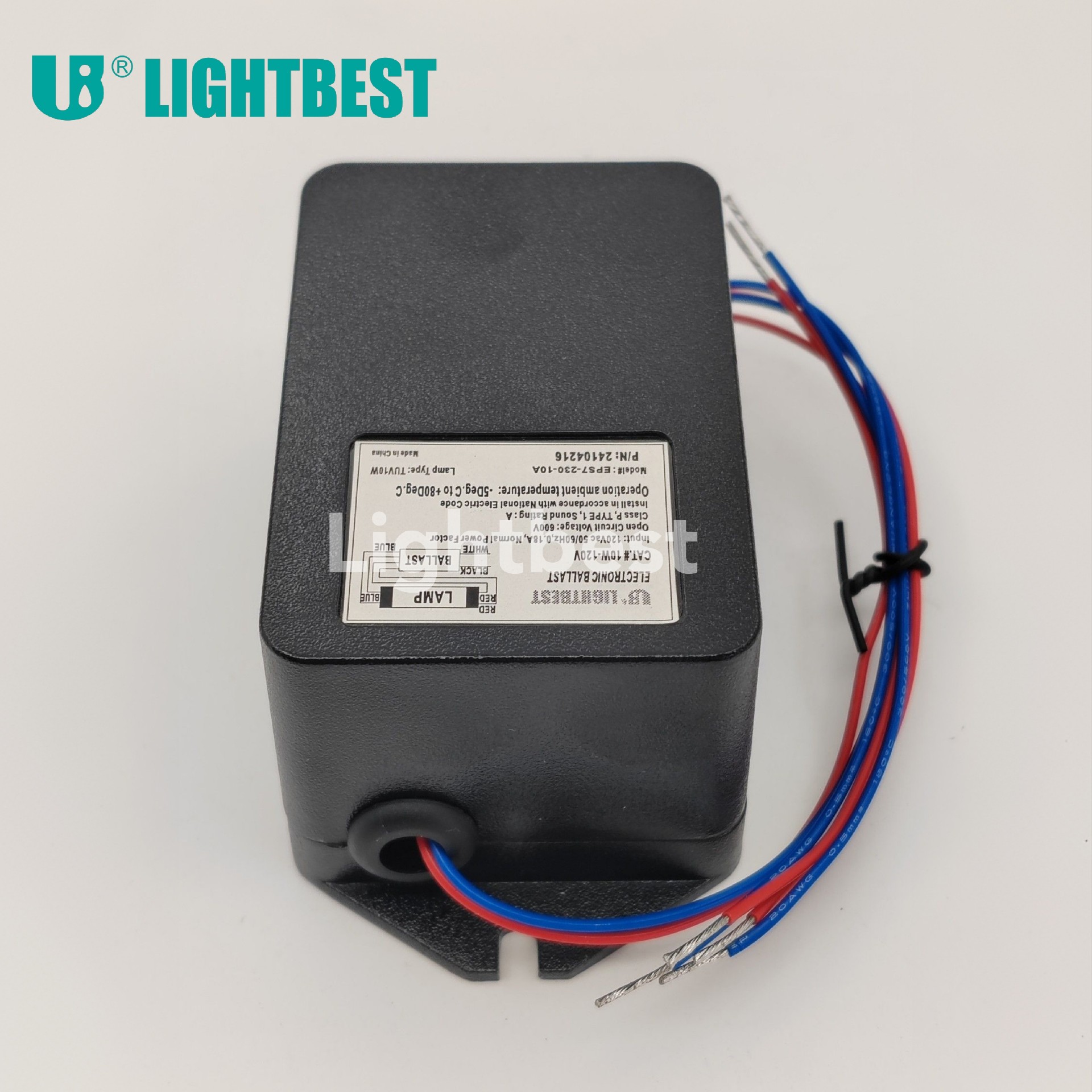

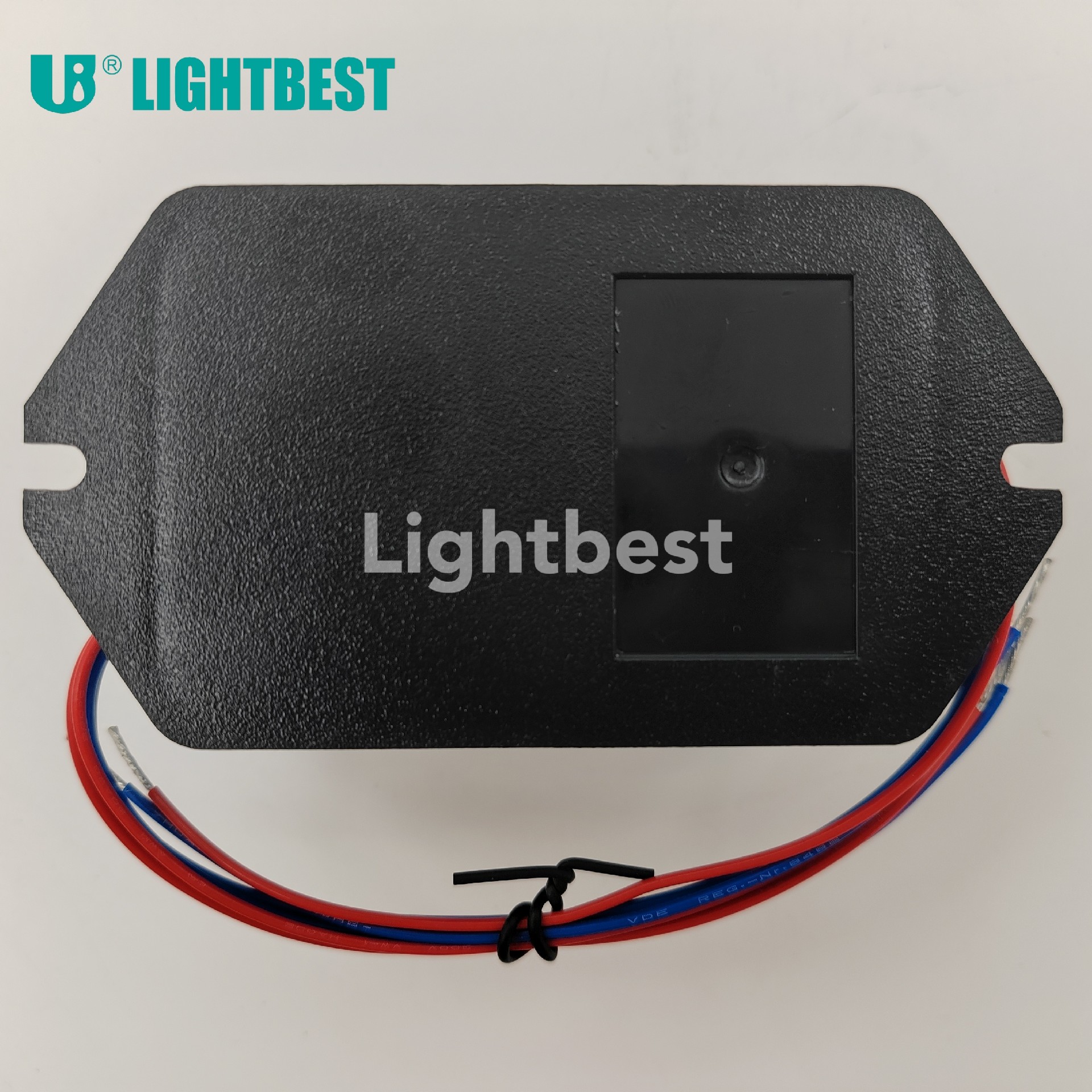

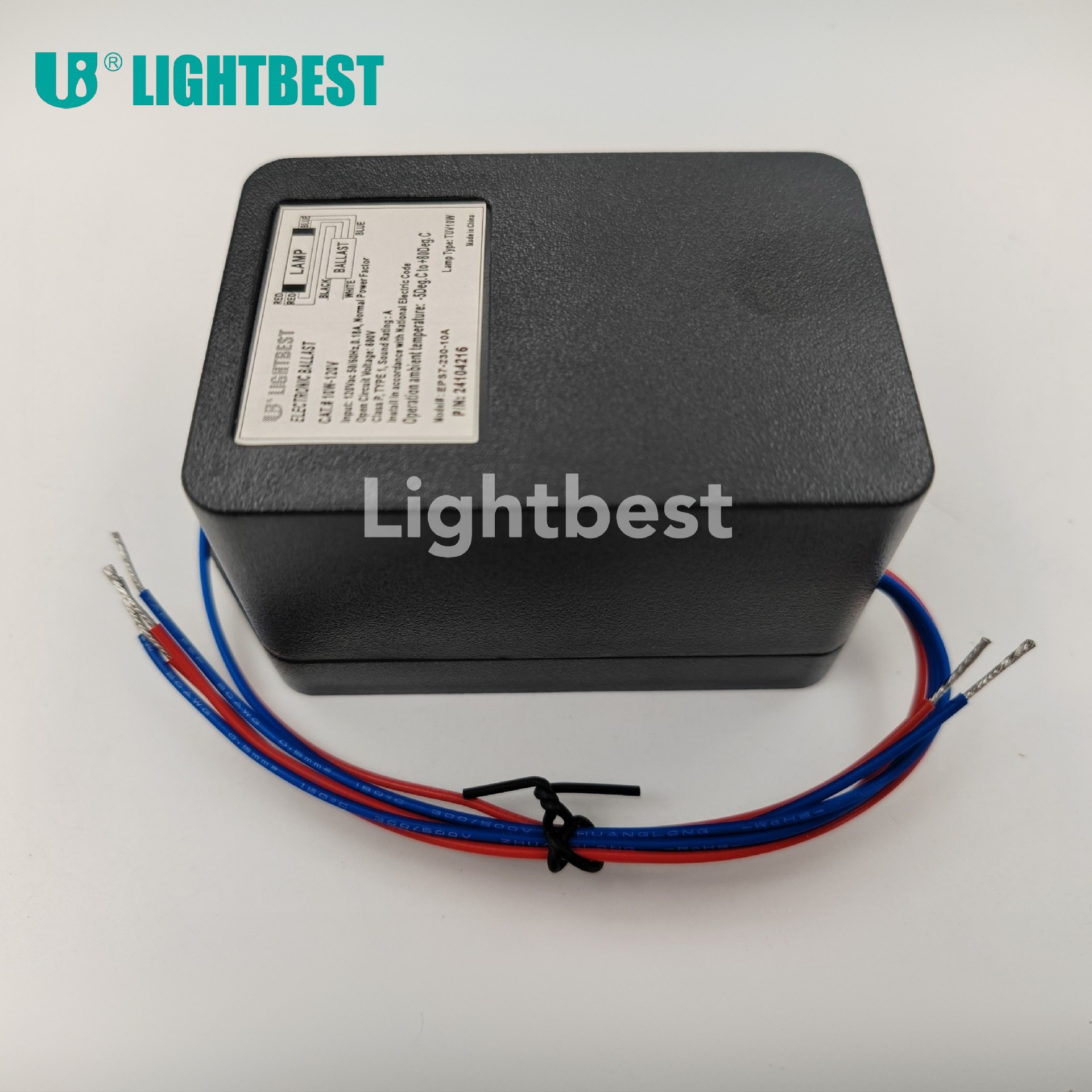

EPS7-230-10A

Lamp  Type: TUV4~8W  PL5~11W

EPS7-230-10A 4.jpg



Features



Starting:Preheat



Add buzzer function



Buzzer function:The buzzer will sound when the lamp fault..



UV lamp can be connected to external LED.


Applications

=>

=>Air purification

=>Industrial water treatment

=>Kitchen purification


Feature

High temperature resistance of 80°, including the PCB and component housing inside

Can be used in microwave oven
